Workshop welding machine SHBG1000
Workshop Fittings Welding Machine

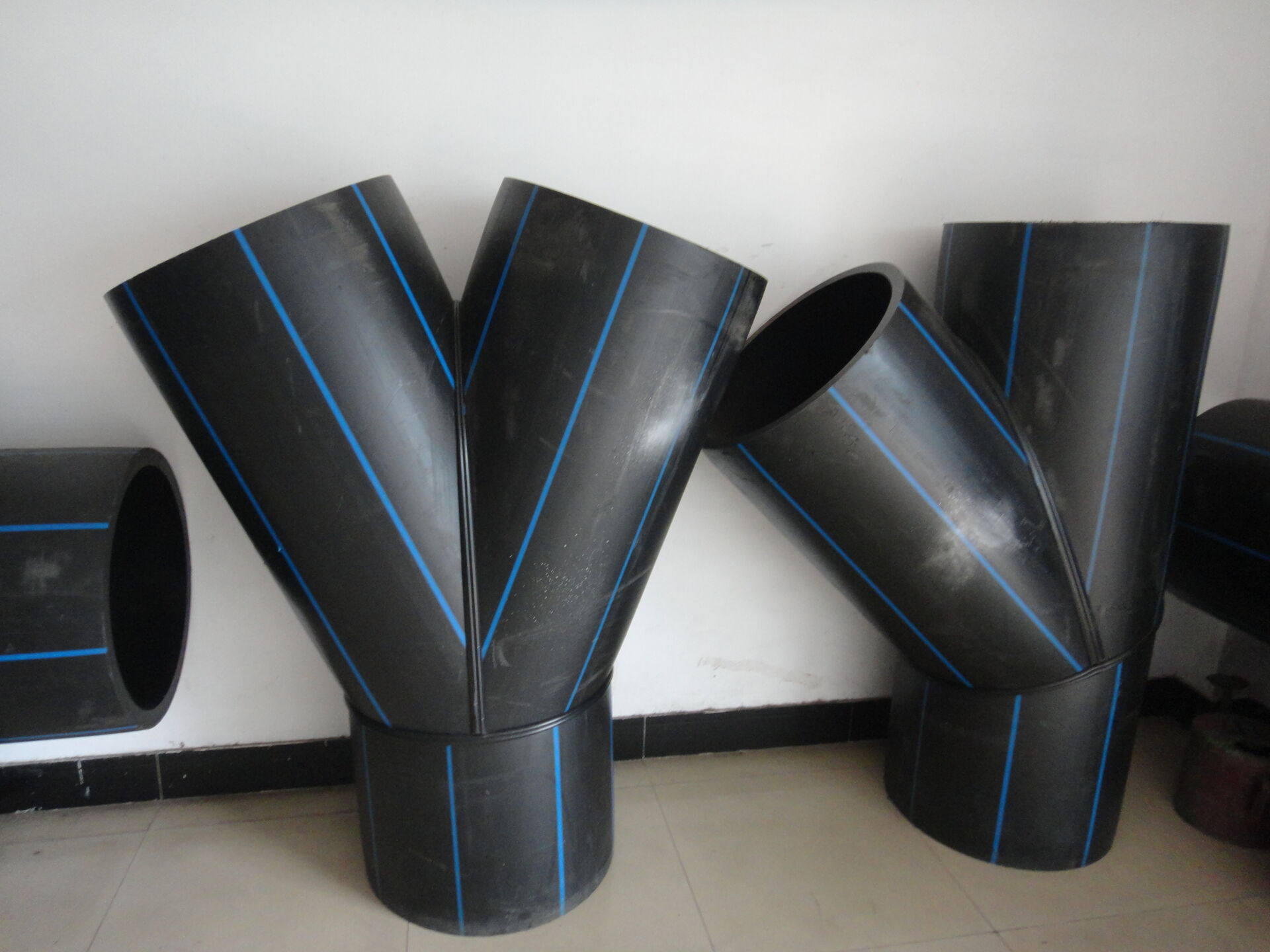

630mm--1000mm,Multi-angle workshop fittings welding machine is suitable for welded PE、PP、PVDF and other hot plastic material pipes. it can weld and process T, Y, cross ,45°,60° and other pipe fittings. the computer control system monitors the whole process of production to ensure that the welding parameters are always in the set state.

Share :

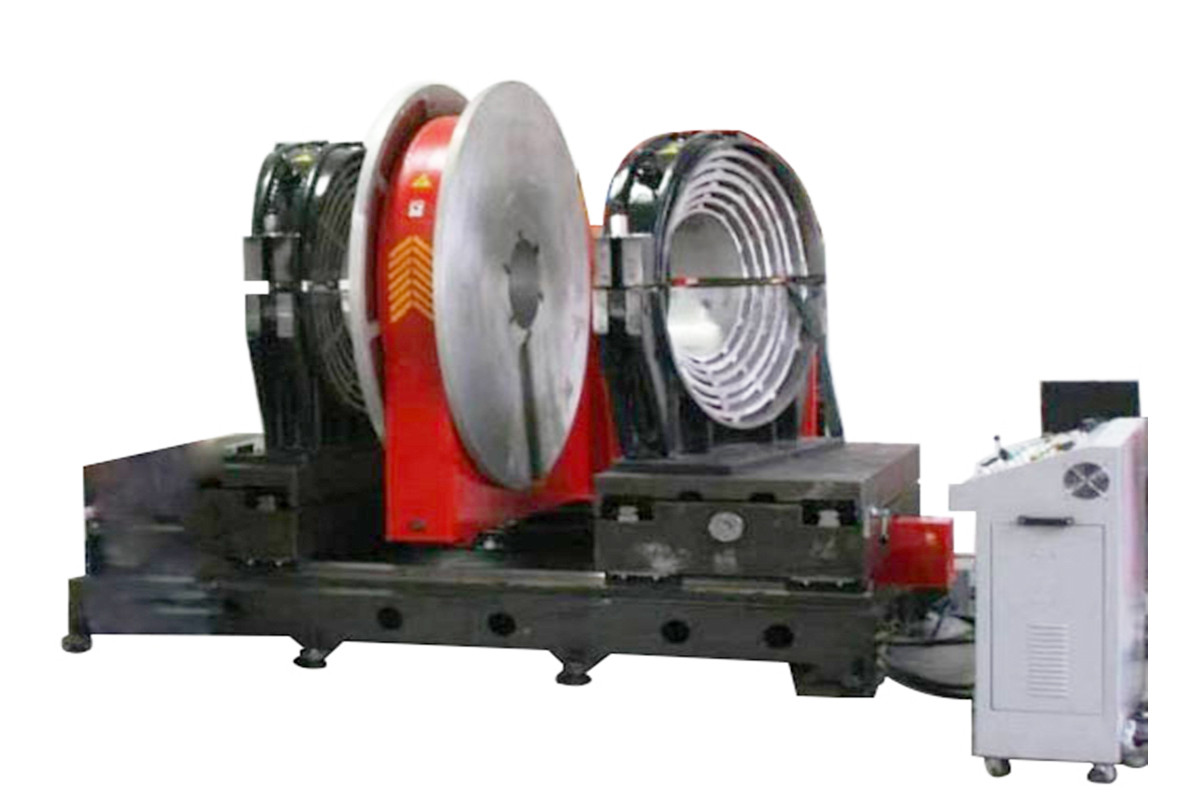

多角焊机  800-1000.jpg


Equipment SpecificationsSHBG 1000

Type Of Welded Pipe Fittings

0~90° Elbow, positive three way, positive four way
Welding Range (mm)630mm--1000mm
Operating Voltage (V/HZ)380V  50HZ
Heating Plate Temperature (℃)0~270℃
Maximum Pressure16Mpa
Cylinder Block Area3846m㎡
Aggregate Capacity59.5KW

Workshop Machine Fittings Diagrams1.jpg

Workshop Machine Fittings Diagrams2.jpg

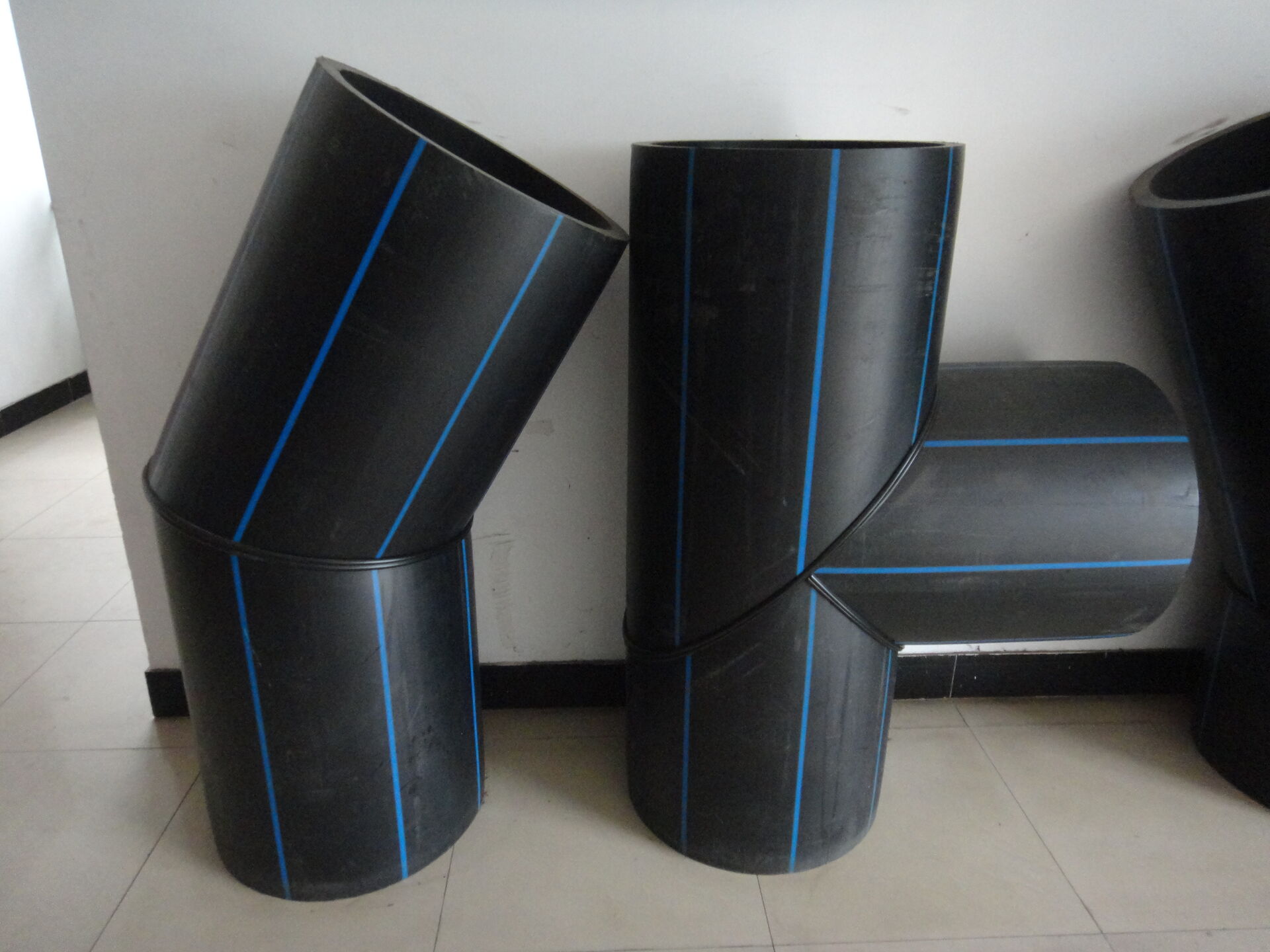

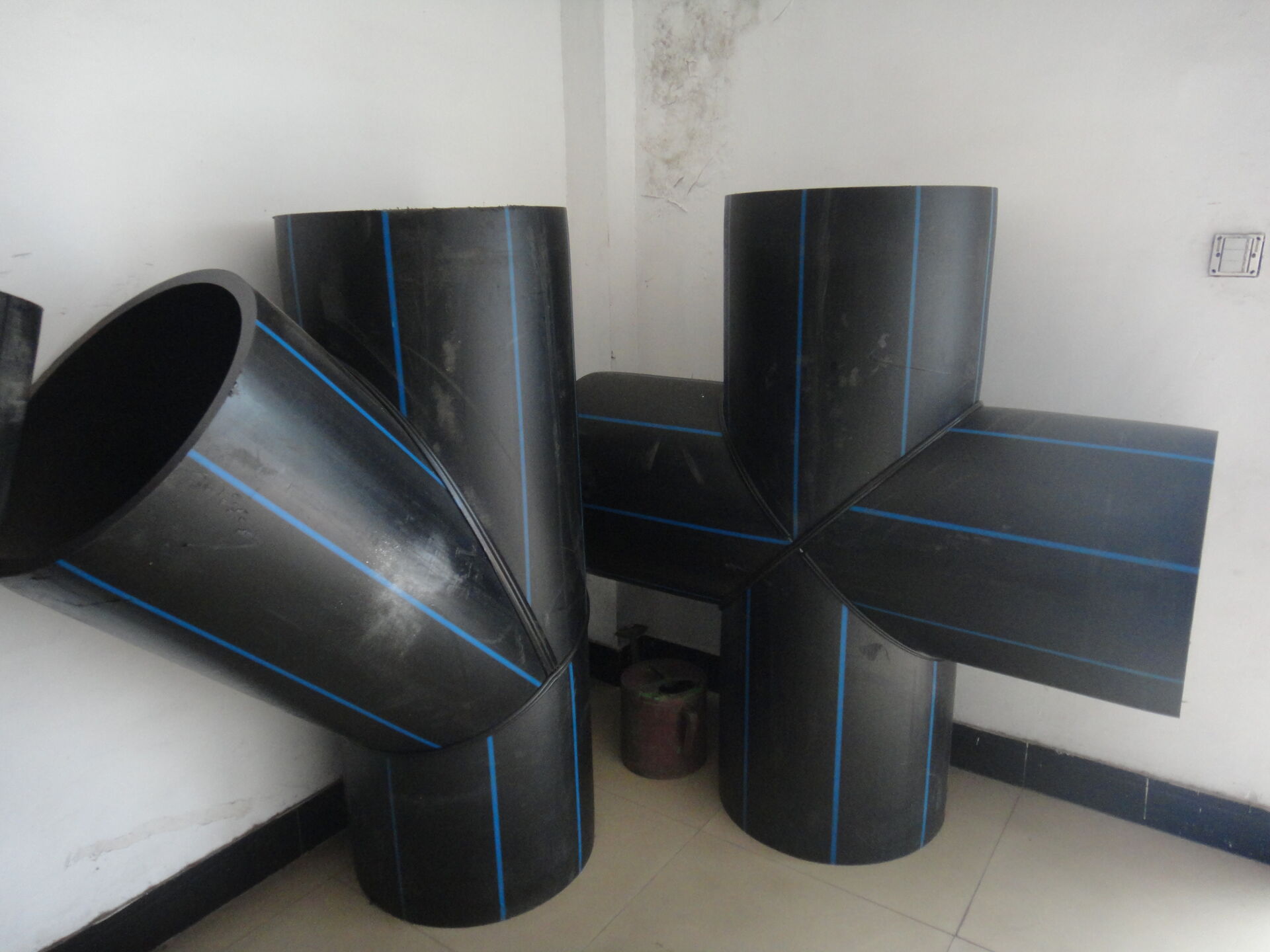

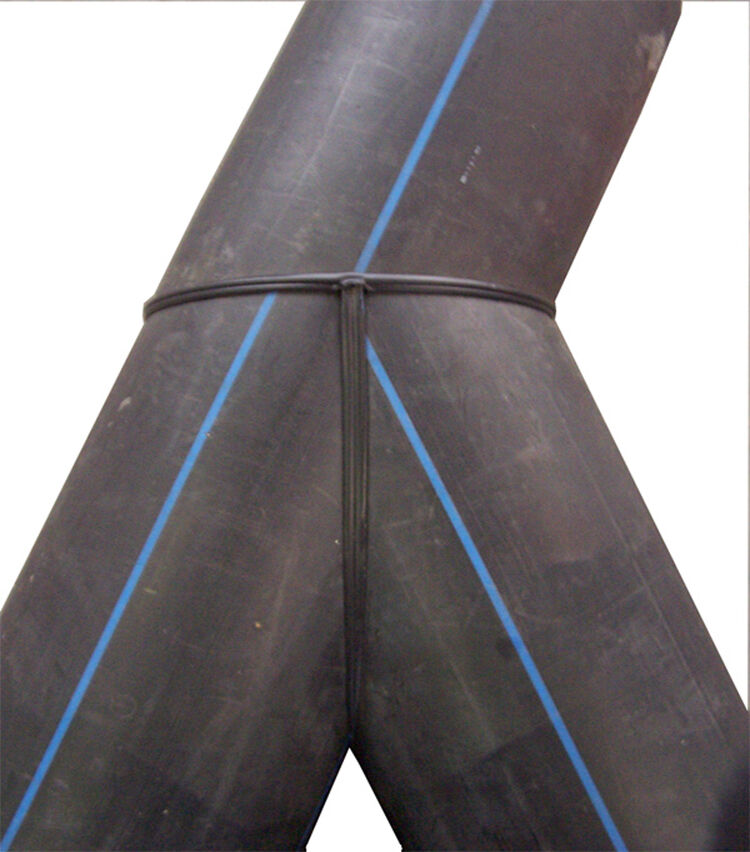

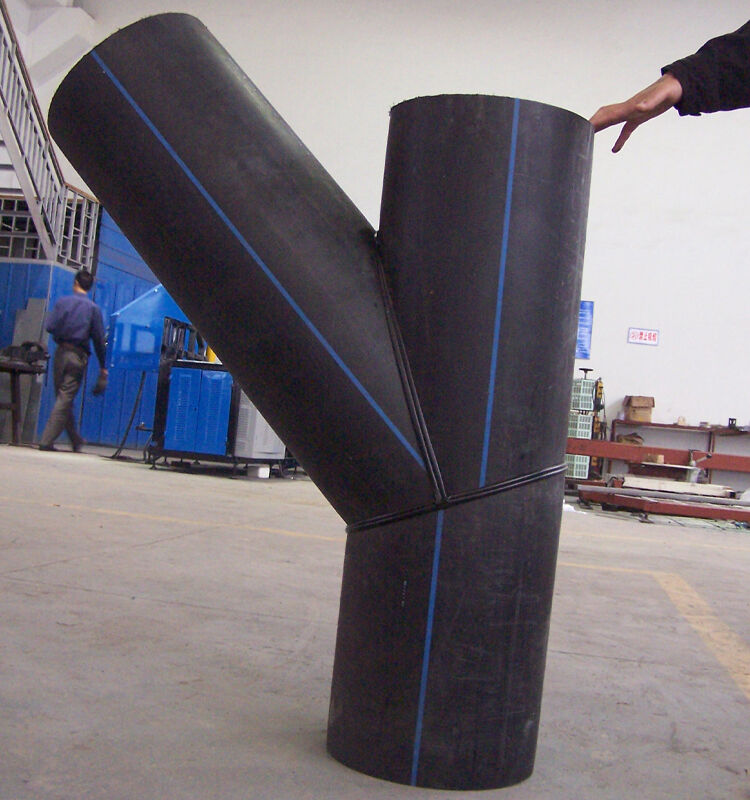

1. Multi-angle workshop fittings welding machine is suitable for welded PE/PP/PVDF and other hot plastic material pipes. it can weld and process T, Y, cross ,45°,60° and other pipe fittings.

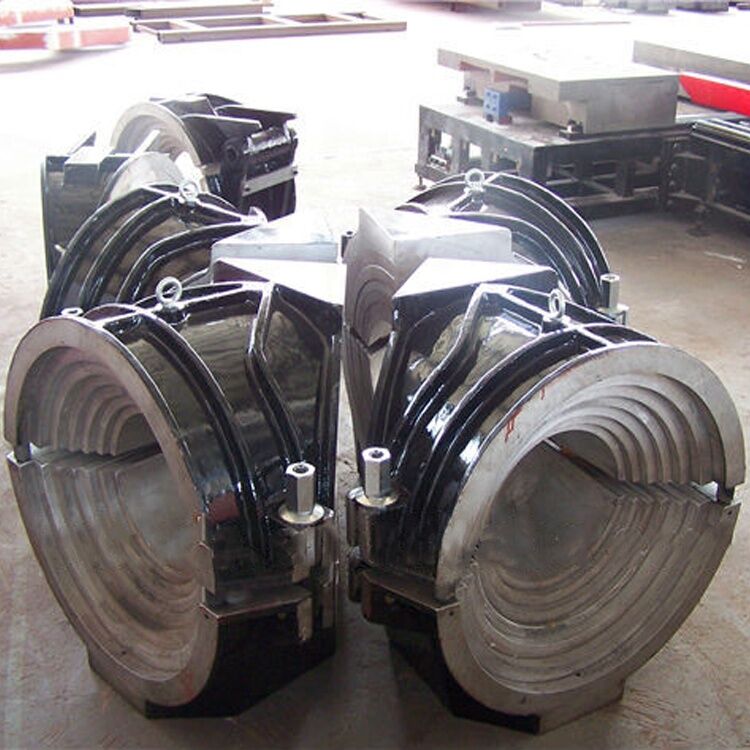

2. Base on the integrated design, if welded different fitting you just need to replace the corresponding fixture.

3. Welding position can transform that it is convenient for welding all kinds of pipe fittings.

4. The frame is sturdy, and the main material is ZL104 aluminum, which is light in weight and high in strength.

5. Removable imported PTFE coated heating mould, heating plate thickened and twice coated with separate temperature control system, the temperature can be controlled to a minimum range.

6. High power milling cutter,mirror cutter disk,strong motor,high con-centricity,smooth milling,strong with out slipping.

7. Separate two-channel timer records times in heating and cooling phases.

8. Digital high-accurate pressure gauge indicates clearer readings.

9. The main electrical apparatus elements are best of china, many are imported from abroad.

10. The performance of the whole machine is stable, accurate, reliable and easy to use. In pressure piping applications, providing excellent performance, the welded pipe acts as a whole pipe.

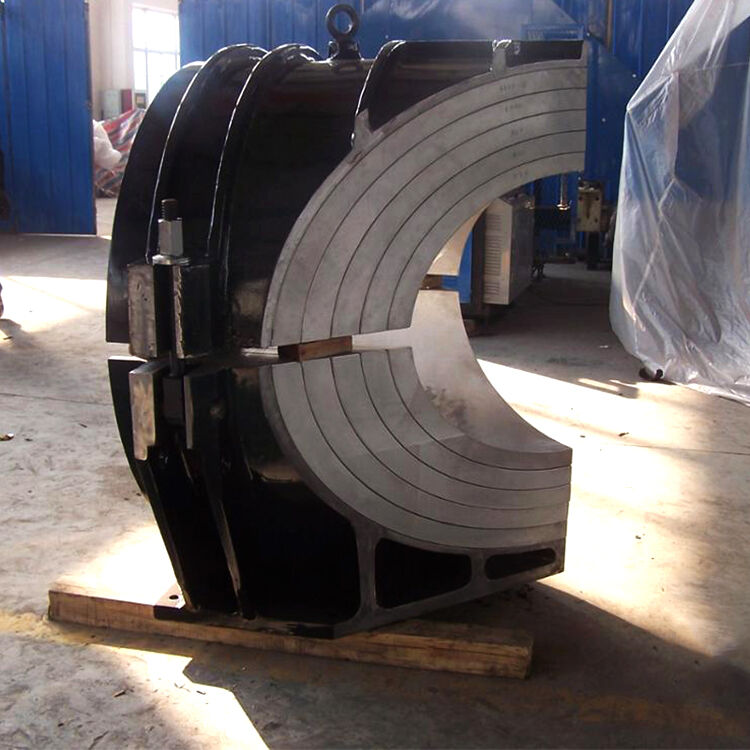

Short Flange Welding Fixture, Short Pipe Welding.



More than 23 years professional experience in the production and import and export business of welding machine company.



CE,SGS,ISO9001 Certificate, OEM or ODM services both available for our company.


Quick, efficient and professional response within 12 hours.




We will give you 2 years warranty after you purchasing.


Provide on line video technique Teaching,technical support and solution by chief engineer.




Strict quality control system and team,on-time delivery,and 24 hour after-sales service.


Reasonable price and shorter production cycle,accept sample order before mass order.


Strength Factory, Alibaba Verified supplier,helping you build your reputation in your pipeline projects.


图层 154.png

Jinan Bada Plastic Pipe Welding Equipment Co.,Ltd is located in Jinan city, which is the capital of Shandong province. It is a professional manufacturer for hot melt machine producing. The main products are Bada series butt fusion welding machine, automatic butt fusion welding machine, pipe fitting welding machine, saddle-shaped taper pipe butt fusion welding machine,plastic pipe multi-angle cutting saw, PPR socket welder and other auxiliary building machines. We have the most advanced technology and producing experience. The R&D department have more than 10 designers, we have cooperated with Zhejian Univeraty for more than 2 years that our technology is the most advanced in China, our electrofusion welding machine is the best in china. The products have passed the ISO9001 quality system certification and CE certification. The products are sold at home and abroad. Our products have already been sold to America, Chile, the Middle East, South Africa, Southeast Asia, more than 30 countries and regions.
