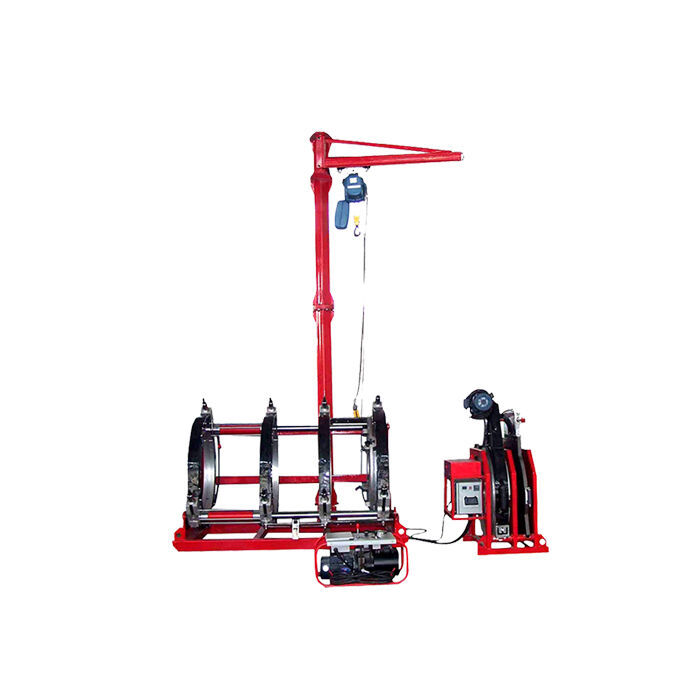

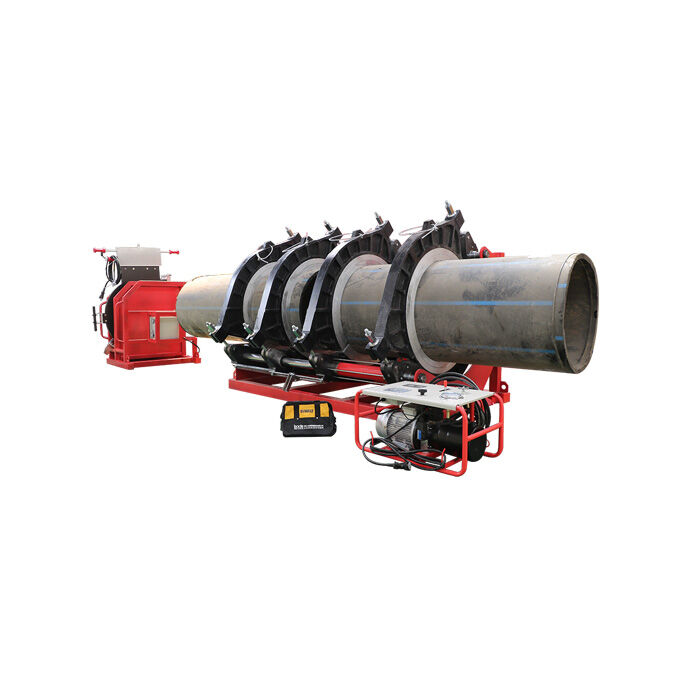

SHBD 1300-1600
Hydraulic Butt Fusion Welding Machine
1200mm-1600mm, Hydraulic butt fusion welding machine Suitable for welding of plastic pipes and fittings made of PE/PP/PVDF. PP pipes and fittings for the transportation of gas, water and other fluids.

Share :


Equipment SpecificationsSHBD1600-1200
Weldable Pipe Range


System Pressure Regulating Range0~25MPa
Operating Voltage

380V  50HZ

Heating Plate Temperature0~270℃
Surface Temperature Difference Of Heating Plate


Cylinder Block Area6300m㎡
Heating Plate Power


Mill Cutter Power


Hydraulic Station Power


Lifting Power


Total Power63.7KW


1. Hydraulic butt fusion welding machine Suitable for welding of plastic pipes and fittings made of PE/PP/PVDF. PP pipes and fittings for the transportation of gas, water and other fluids.

2. Changeable welding position enables to weld various fittings more easily.

3. All components of the hydraulic station comply with CE standards, and the control precision can reach 0.01%.

4. The frame is sturdy, and the main material is ZL104 aluminum, which is light in weight and high in strength.

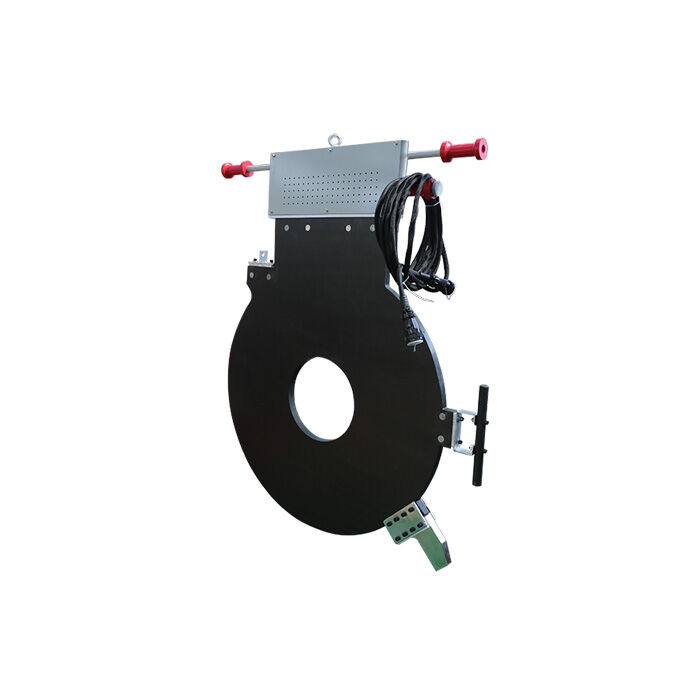

5. Removable imported PTFE coated heating mould, heating plate thickened and twice coated with separate temperature control system, the temperature can be controlled to a minimum range.

6. High power milling cutter, mirror cutter disk, strong motor, high con-centricity, smooth milling, strong with out slipping.

7. Separate two-channel timer records times in heating and cooling phases.

8. Digital high-accurate pressure gauge indicates clearer readings.

9. The main electrical apparatus elements are best of China, many are imported from abroad.

10. The performance of the whole machine is stable, accurate, reliable and easy to use. In pressure piping applications, providing excellent performance, the welded pipe acts as a whole pipe.
